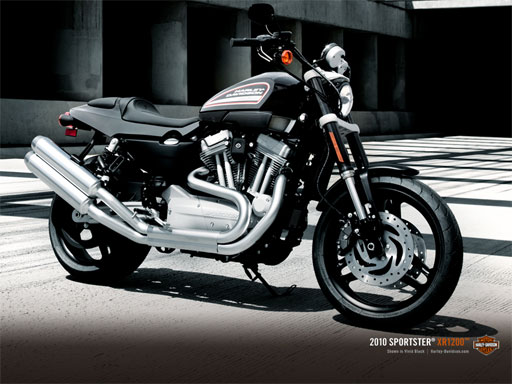

XR1200

DIMENSIONS U.S. Units
Metric Units Length 85.4 in. 2169.16 mm
Seat Height Laden 2 29.2 in. 741.68 mm
Unladen 2 30.5 in. 774.7 mm

Ground Clearance 5.8 in. 147.32 mm
Rake Steering Head 29.3 ° 29.3 °
Trail 5.12 in. 130.048 mm
Wheelbase 59.8 in. 1518.92 mm
Fuel Capacity 3.5 gal. 13.2475 L
Oil Capacity 2.8 qt. 2.6488 L
Weight Dry Weight 562 lbs. 254.9232 kg
Running Order 580 lbs. 263.088 kg

Luggage Capacity Volume N/A N/A
Weight N/A N/A

POWERTRAIN Engine 3 Air-cooled, Evolution® Air-cooled, Evolution®
Displacement 73.4 cu. in. 1200 cc
Bore x Stroke 3.5 in. / 3.812 in. 88.9 mm / 96.8248 mm
Engine Torque J1349 J1349
Engine Torque 4 73.91 ft. lbs. @ 4000 rpm 100.2072 Nm @ 4000 rpm
Fuel System 5 Electronic Sequential Port Fuel Injection (ESPFI) Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 10.0:1 10.0:1
Primary Drive Chain, 57/34 ratio Chain, 57/34 ratio
Fuel Economy Fuel Economy City 6 38 mpg 6.1895 l/100km
Fuel Economy Hwy 6 53 mpg 4.4377 l/100km

Gear Ratio (overall) 1st 10.782 10.782
2nd 7.702 7.702
3rd 5.728 5.728
4th 4.748 4.748
5th 4.071 4.071
6th N/A N/A

WHEELS/TIRES Wheels Front 7 Black, 3-Spoke Cast Aluminum Black, 3-Spoke Cast Aluminum
Wheel Option 7 N/A N/A
Rear 7 Black, 3-Spoke Cast Aluminum Black, 3-Spoke Cast Aluminum

Tire Size Front 120/70ZR18 M/C 120/70ZR18 M/C
Rear 180/55ZR17 M/C 180/55ZR17 M/C

ELECTRICAL Instruments Handlebar-mounted tachometer, electronic speedometer with odometer, time-of-day clock on odometer, dual trip meter, low fuel warning light, low oil pressure light, engine diagnostics readout Handlebar-mounted tachometer, electronic speedometer with odometer, time-of-day clock on odometer, dual trip meter, low fuel warning light, low oil pressure light, engine diagnostics readout
Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, low battery, security system (optional) High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, low battery, security system (optional)
Reverse Function N/A N/A

CHASSIS Brakes Dual 4-Piston, fixed front, single-piston floating rear Dual 4-Piston, fixed front, single-piston floating rear
Parking Brake N/A N/A
Lean Angle 39 / 40 ° 39 / 40 °
Exhaust System Brushed, straight-shot, high-performance exhaust with dual mufflers Brushed, straight-shot, high-performance exhaust with dual mufflers

COLOR OPTIONS Color Options Vivid Black
Brilliant Silver Denim
Mirage Orange Pearl
